Brass TerminalBrass Lugs

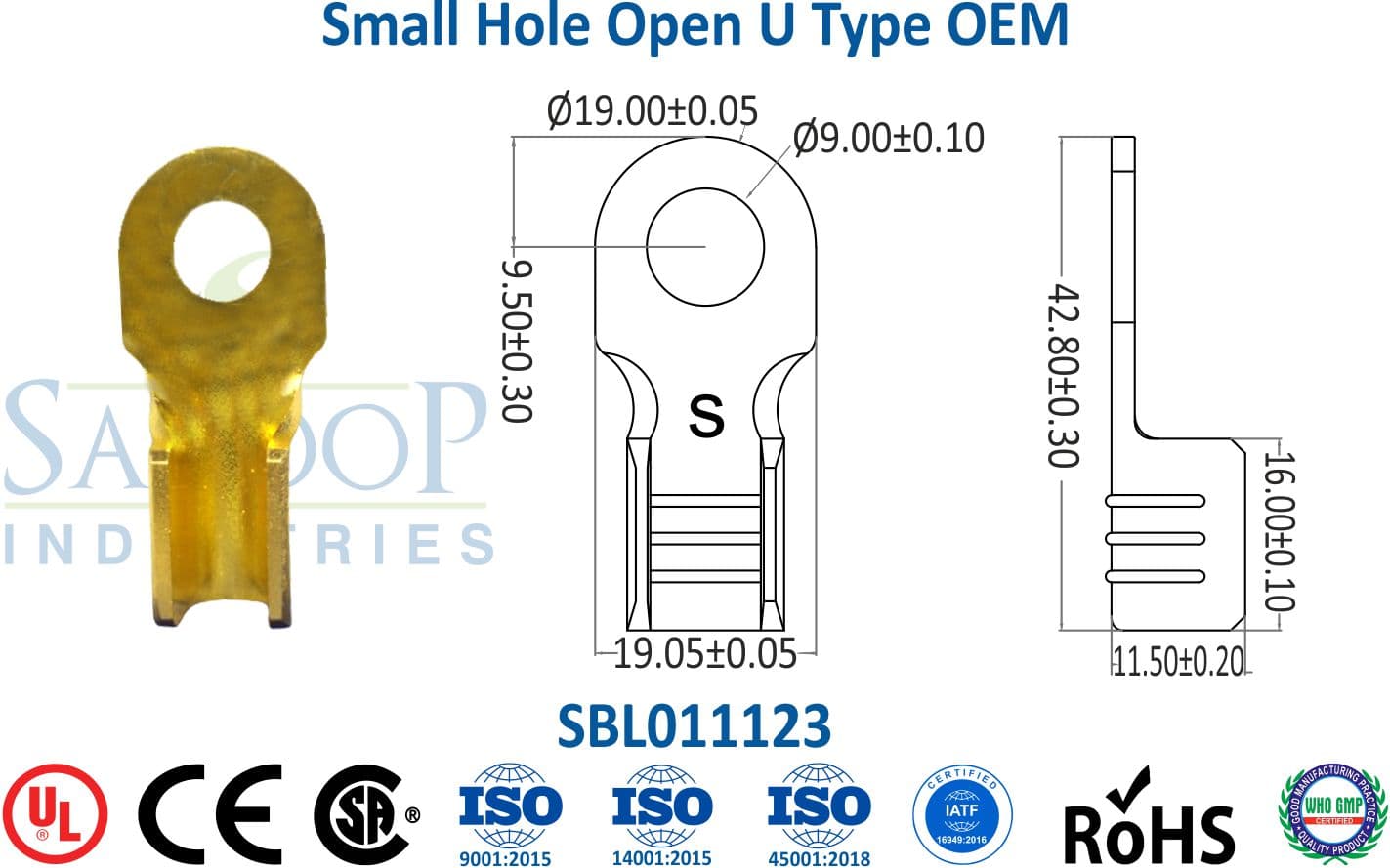

Brass Lug - Small Hole Open U Type OEM (SBL011123)
Part #: SBL011123
Small hole open U-type terminal for OEM applications. Compact design with high conductivity.
Specifications
DescriptionSmall Hole Open U Type OEM
MaterialCuZn-63/37
Standard PackingCut-12 Pcs.
Ring Inner Diameter9.00±0.10 mm
Ring Outer Diameter19.00±0.05 mm
Total Height42.80±0.30 mm
Barrel Length16.00±0.10 mm
Barrel Width41.50±0.20 mm
TypeOpen-Barrel U-Type Terminal
Applications:
AutomotiveBattery ConnectionsOEM Applications
