Brass TerminalRing Series

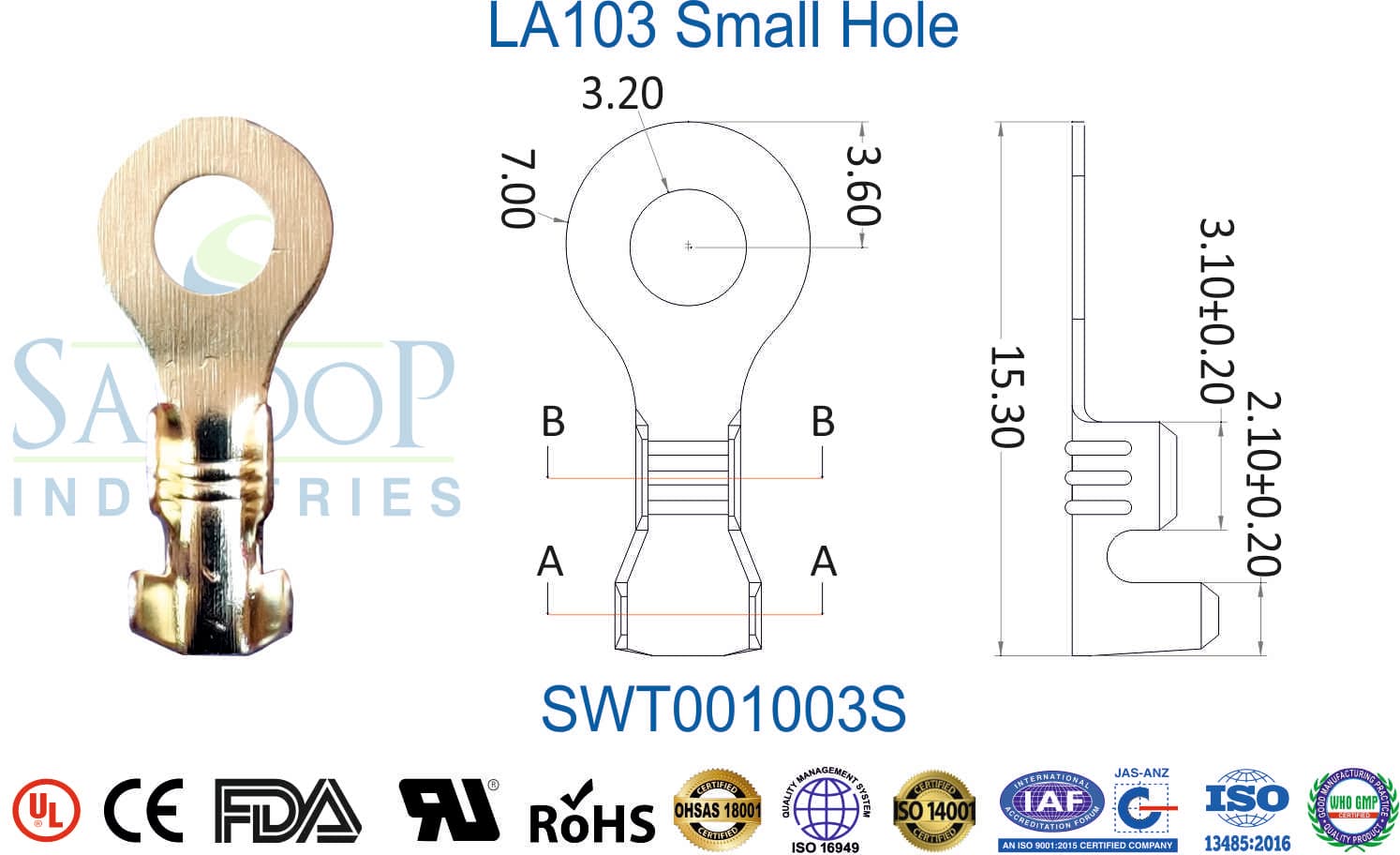

Ring Series Terminal - LA103 Small Hole (SWT001003S)
Part #: SWT001003S
LA103 ring terminal with small hole (3.20mm ID) for 1.50-2.20 sq mm cable. High conductivity brass construction.
Specifications
OD Ø7.00 mm
ID Ø3.20 mm
Cable Size SQ. MM1.50-2.20
DescriptionLA103 Small Hole
MaterialCuZn-63/37
Standard PackingSpool-8000 Cut-1000
Applications:
AutomotiveElectrical Connections
