Brass TerminalBrass Lugs
Brass Lug - No 14 Medium Duty (SBL011146)
Part #: SBL011146
No 14 medium duty spade terminal. Open U-type design for medium-duty applications.

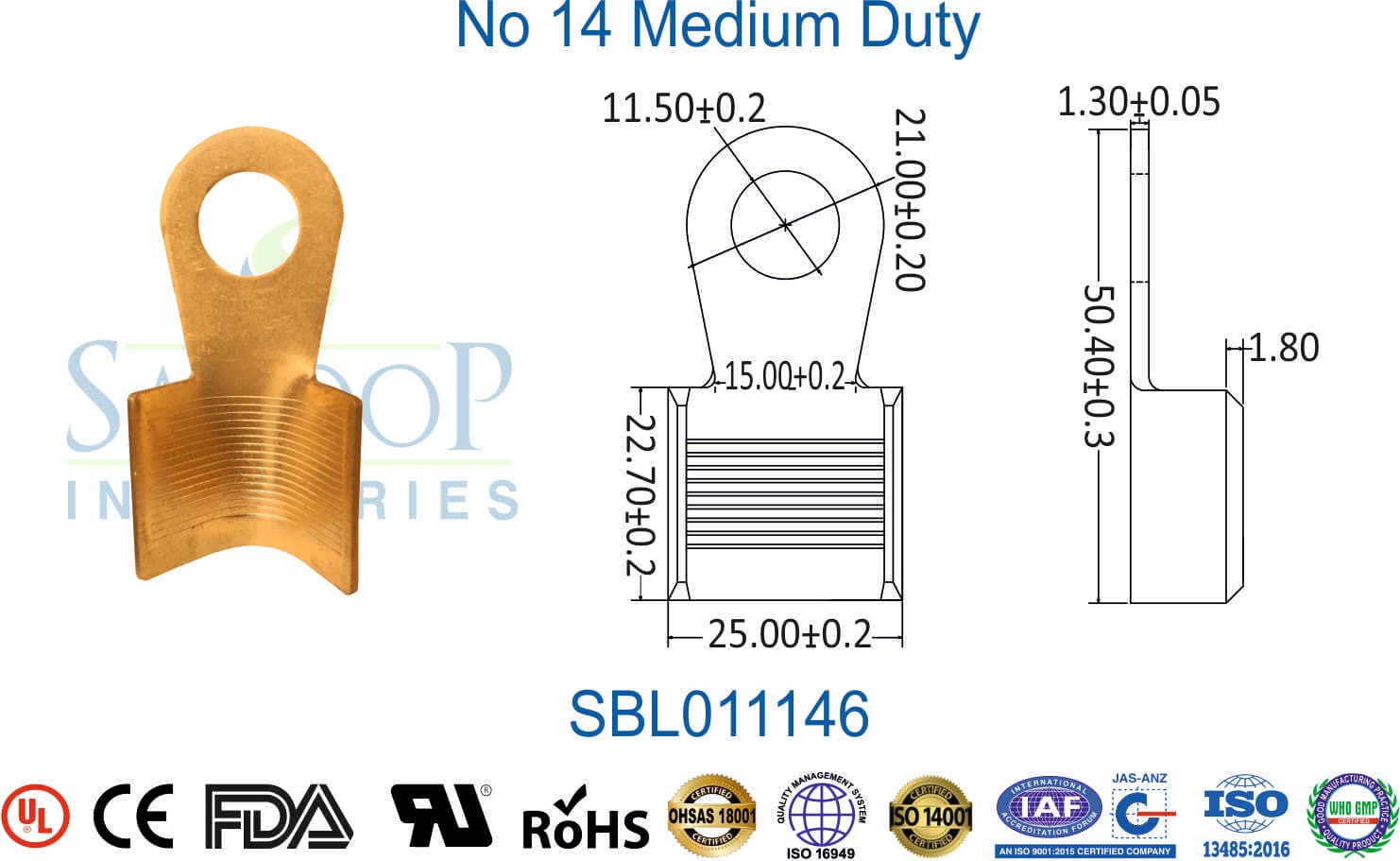

Specifications
DescriptionNo 14 Medium Duty
MaterialCuZn-63/37
Standard PackingCut-12 Pcs.
Total Length25.00±0.2 mm
Fork Opening11.50±0.2 mm
Inner Fork Width15.00±0.24 mm
Total Width21.00±0.20 mm
Barrel Width22.70±0.24 mm
Total Height50.40±0.5 mm
Thickness1.30±0.05 mm
TypeOpen-Barrel Spade Terminal
Applications:
AutomotiveBattery ConnectionsMedium Duty Applications
