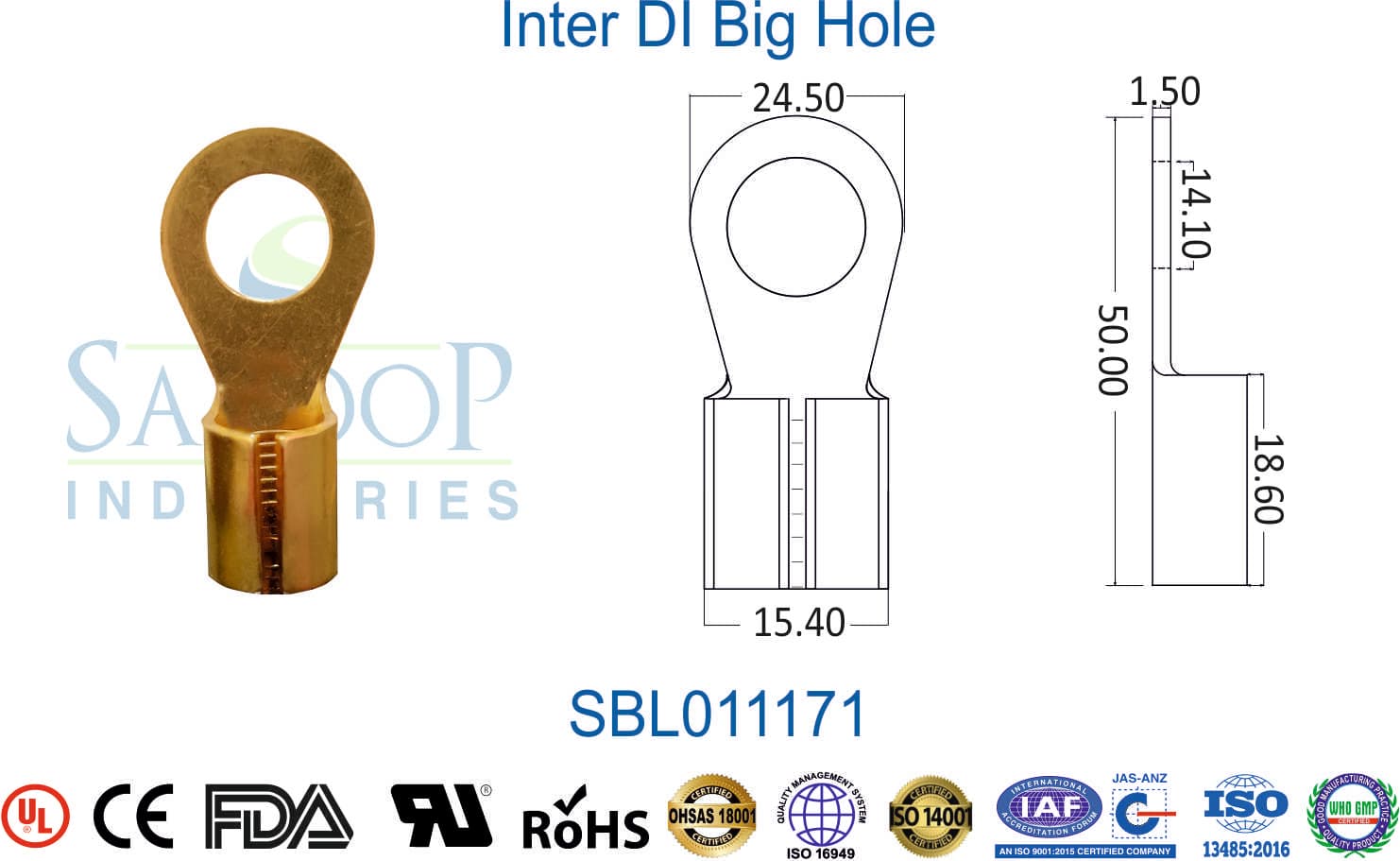

Brass Lug - Inter DI Big Hole (SBL011171)
Part #: SBL011171
Intermediate diameter big hole ring terminal. Large opening for heavy-duty battery connections.
Specifications
DescriptionInter DI Big Hole
MaterialCuZn-63/37
Standard PackingCut-12 Pcs.
Overall Length50.00 mm
Ring Outer Diameter24.50 mm
Ring Inner Diameter15.40 mm
Crimp Barrel Width16.80 mm
Ring Thickness1.50 mm
Crimp Barrel Height18.60 mm
TypeRing Terminal
Applications:
AutomotiveBattery ConnectionsHeavy Duty Applications
