Brass TerminalBrass Lugs

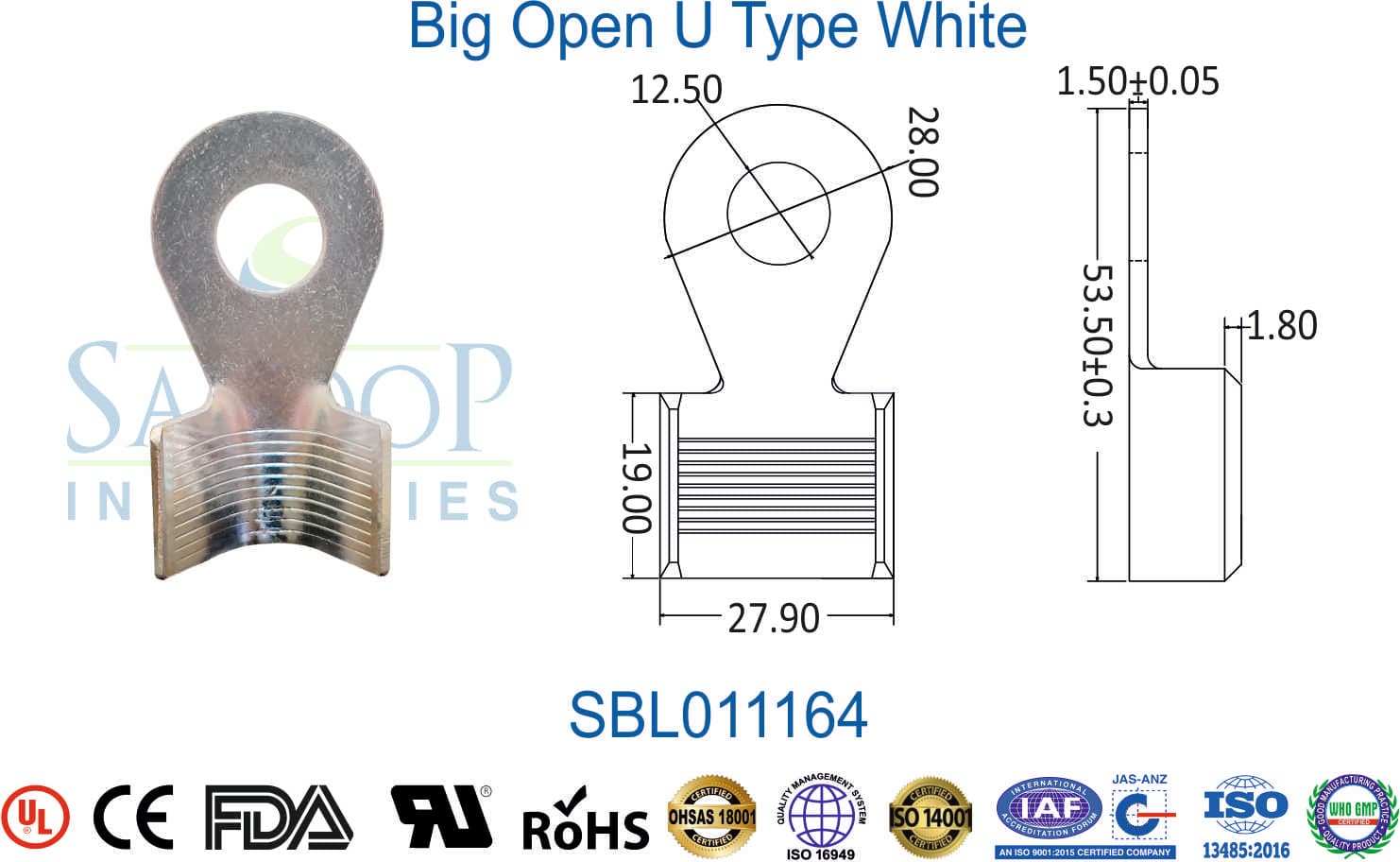

Brass Lug - Big Open U Type White (SBL011164)
Part #: SBL011164
Large open U-type spade terminal with white finish. Premium appearance for heavy-duty applications.
Specifications
DescriptionBig Open U Type White
MaterialCuZn-63/37
Standard PackingCut-12 Pcs.
Ring Outer Diameter12.50 mm
Overall Length27.90 mm
Total Height53.50+0.3 mm
Thickness1.50±0.05 mm
Bottom Thickness1.80 mm
TypeOpen-Barrel U-Type Terminal
FinishWhite
Applications:
AutomotiveBattery ConnectionsHeavy Duty ApplicationsPremium Applications
