Brass TerminalBrass Lugs

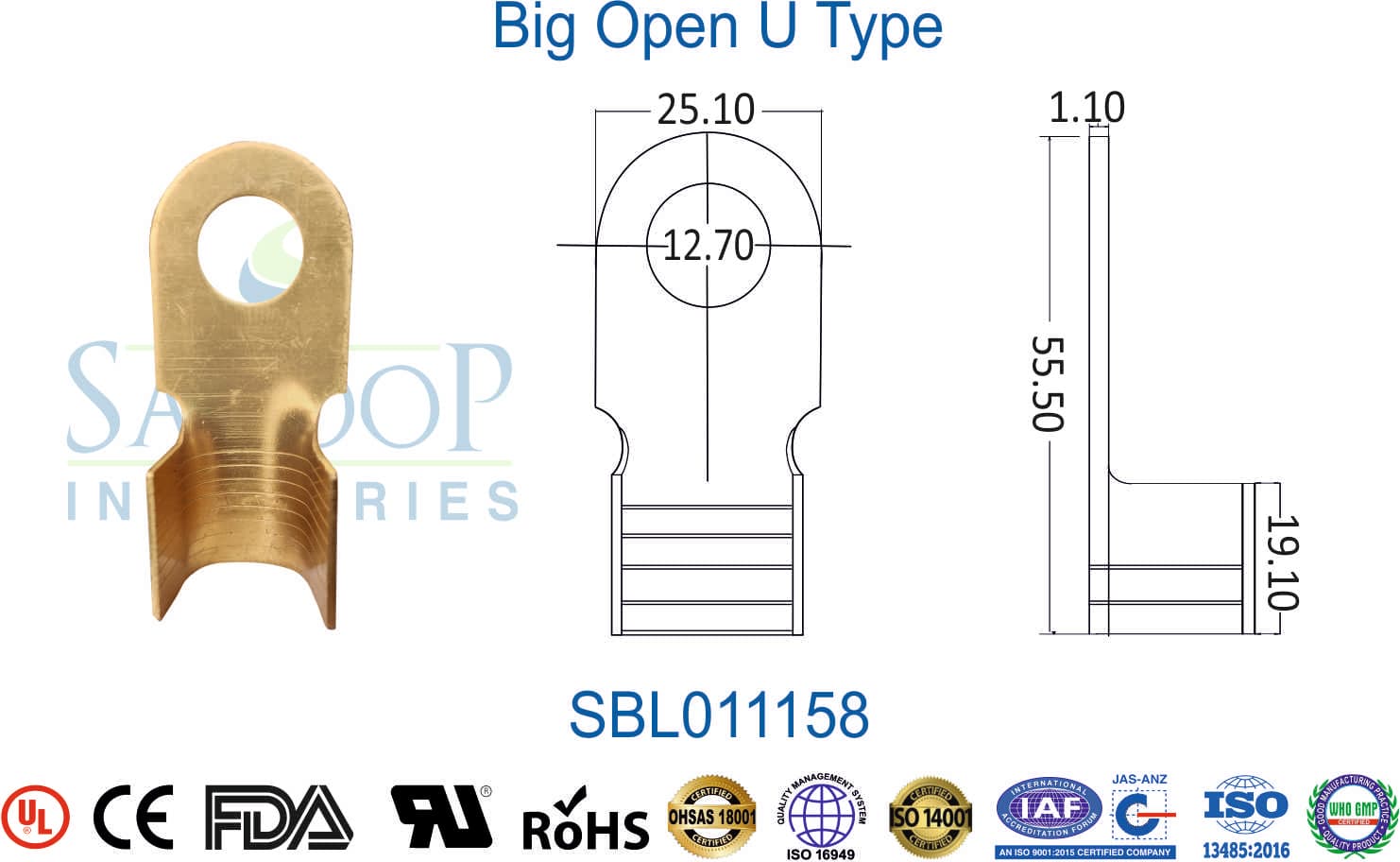

Brass Lug - Big Open U Type (SBL011158)
Part #: SBL011158
Large open U-type spade terminal for heavy-duty applications. Enhanced design for high-current applications.
Specifications
DescriptionBig Open U Type
MaterialCuZn-63/37
Standard PackingCut-12 Pcs.
Ring Outer Diameter25.10 mm
Ring Inner Diameter12.70 mm
Overall Length42.70 mm
Total Height55.00 mm
Thickness1.10 mm
TypeOpen-Barrel U-Type Terminal
Applications:
AutomotiveBattery ConnectionsHeavy Duty Applications
Need a Custom Solution?
Our team can help you find the right product or create custom specifications for your needs.
