Brass Terminal0110 Series

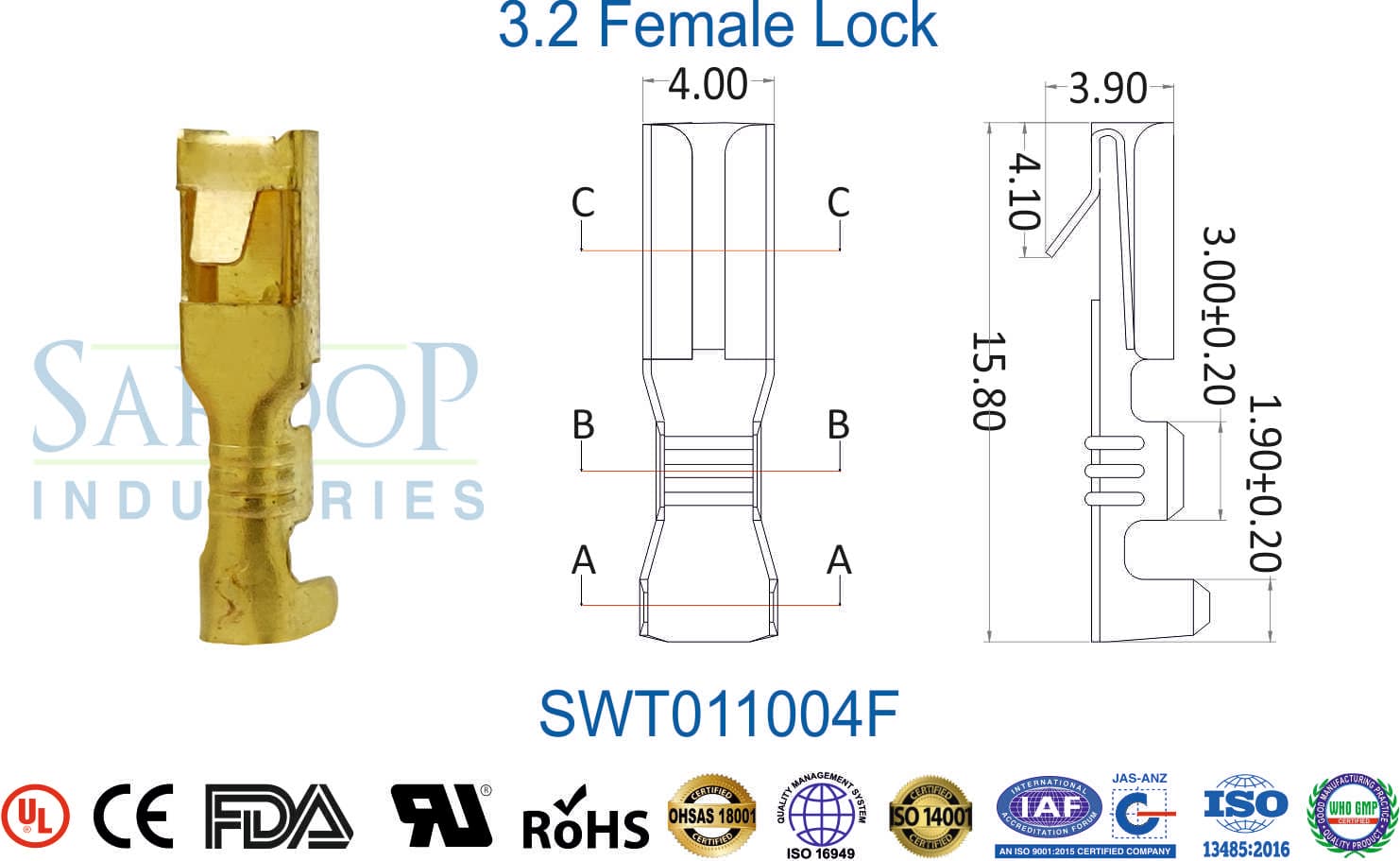

0110 Series Terminal - 3.2 Female Lock (SWT011004F)
Part #: SWT011004F
3.2mm female lock terminal with locking mechanism. Designed to receive male tab connectors.
Specifications
Tab Size Ø3.2 mm
Cable Size SQ. MM1.40-2.10
Description3.2 Female Lock
MaterialCuZn-63/37
Standard PackingSpool-3000 Cut-1000
Applications:
AutomotiveConnectors
