Brass Terminal0110 Series

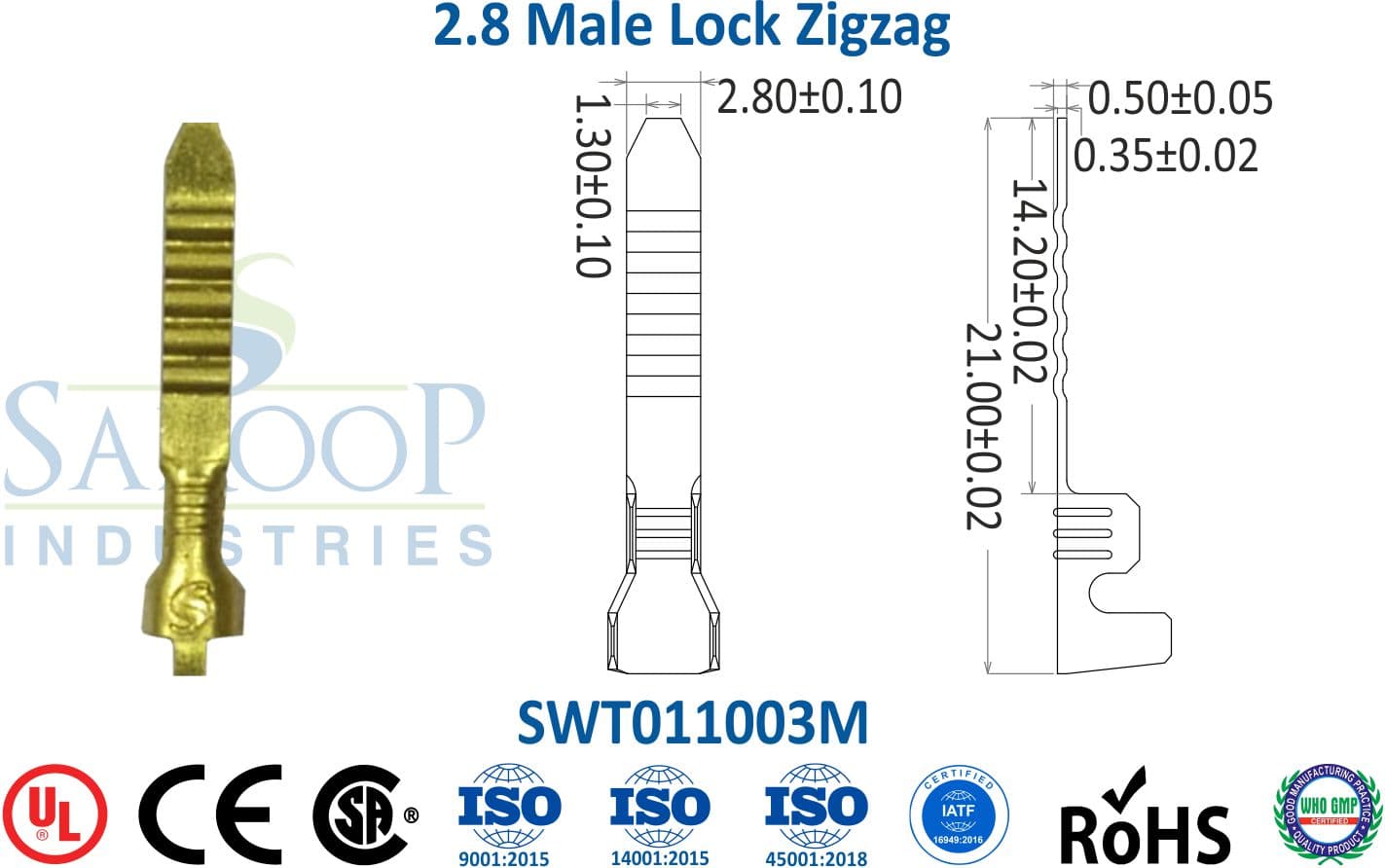

0110 Series Terminal - 2.8 Male Lock Zigzag (SWT011003M)
Part #: SWT011003M
2.8mm male lock terminal with zigzag pattern on crimp barrel. High conductivity brass construction.
Specifications
Tab Size Ø2.8 mm
Cable Size SQ. MM1.40-2.10
Description2.8 Male Lock Zigzag
MaterialCuZn-63/37
Standard PackingSpool-10000 Cut-1000
Applications:
AutomotiveConnectors
