Brass Terminal0110 Series

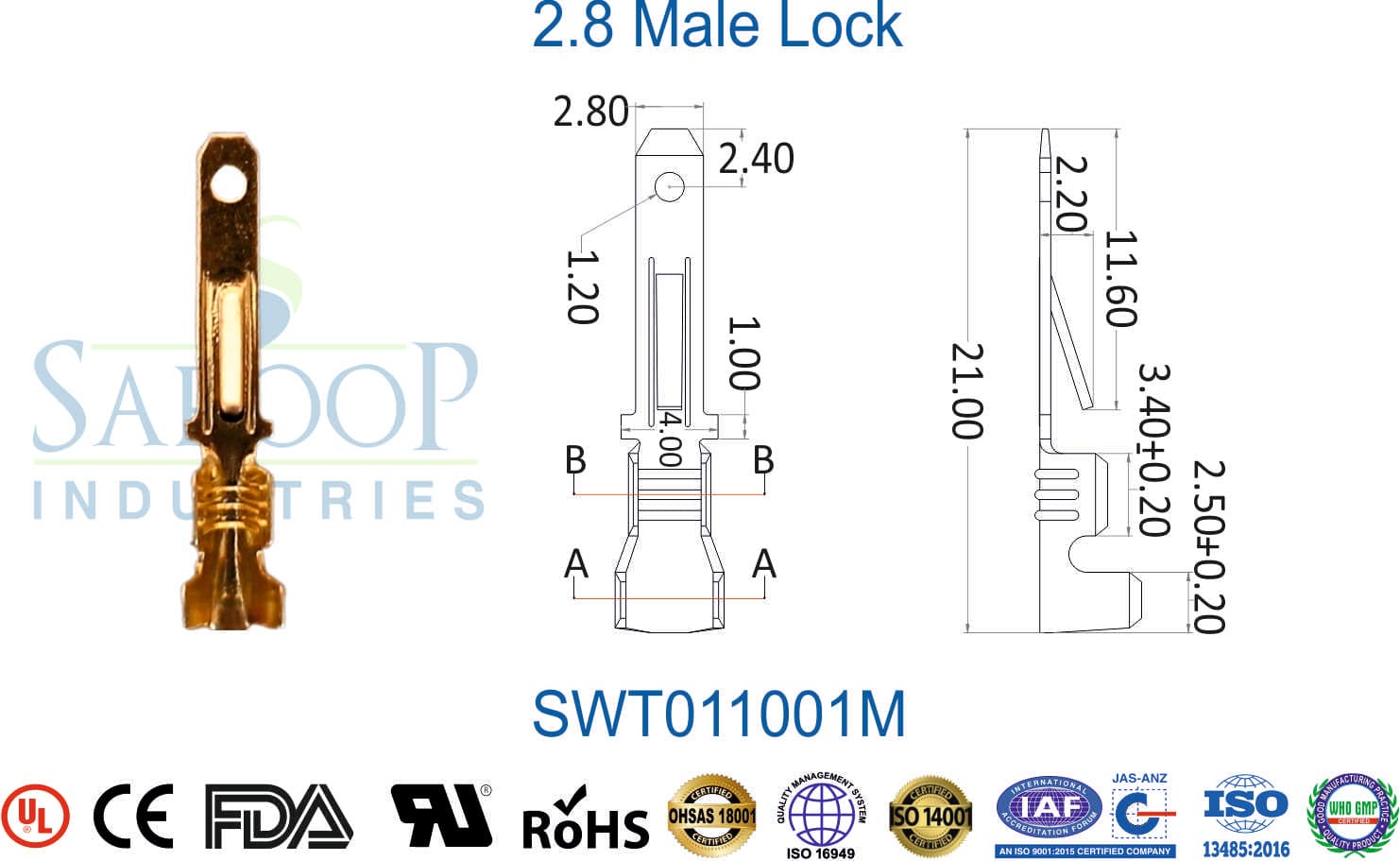

0110 Series Terminal - 2.8 Male Lock (SWT011001M)
Part #: SWT011001M
2.8mm male lock terminal for automotive connectors. High conductivity brass construction with locking mechanism.
Specifications
Tab Size Ø2.8 mm
Cable Size SQ. MM1.40-2.10
Description2.8 Male Lock
MaterialCuZn-63/37
Standard PackingSpool-10000 Cut-1000
Applications:
AutomotiveConnectors
